SN74LVC1G14DRLR Programmable Logic IC SOT-5X3-5 Schmitt Trigger Inverter

SN74LVC1G14DRLR / SOT-5X3-5 / Inverters

This single Schmitt-trigger inverter is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G14 device contains one inverter and performs the Boolean function Y = A. The device functions as an independent inverter with Schmitttrigger inputs, so the device has different input threshold levels for positive-going (VT+) and negativegoing (VT– ) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

[WHO WE ARE]
HAOXIN HK ELECTRONIC TECHNOLOGY CO. LIMITED

Main Agent Distribution of World Famous IC Brands: ALTERA/XILINX/ADI/TI/BROADCOM/LINEAR/CYPRESS/ST/MAXIM/NXP/LATTICE, etc. We are quality-oriented, service-oriented principle, fast delivery, new original packaging spot, keep promises to win the market, and the majority of users to create a better future.

SN74LVC1G14DRLR Programmable Logic IC

Programmable Logic IC SOT-5X3-5

SOT-5X3-5 Schmitt Trigger Inverter

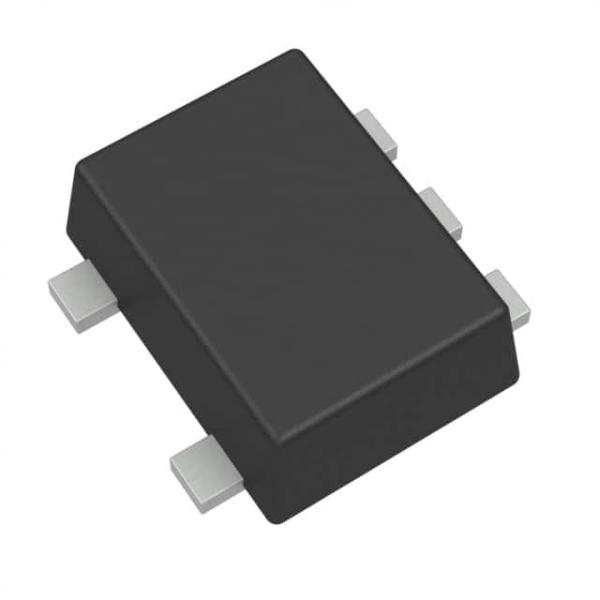

SN74LVC1G14DRLR Programmable Logic IC SOT-5X3-5 Schmitt Trigger Inverter Images
